Module 1 Activity Research

Activities & Exploration

Rabia Azmi


Project 1


Module 1

Activities including exploration of physical computing, Arduino, TouchDesigner, and ProtoPie.

Activity 1

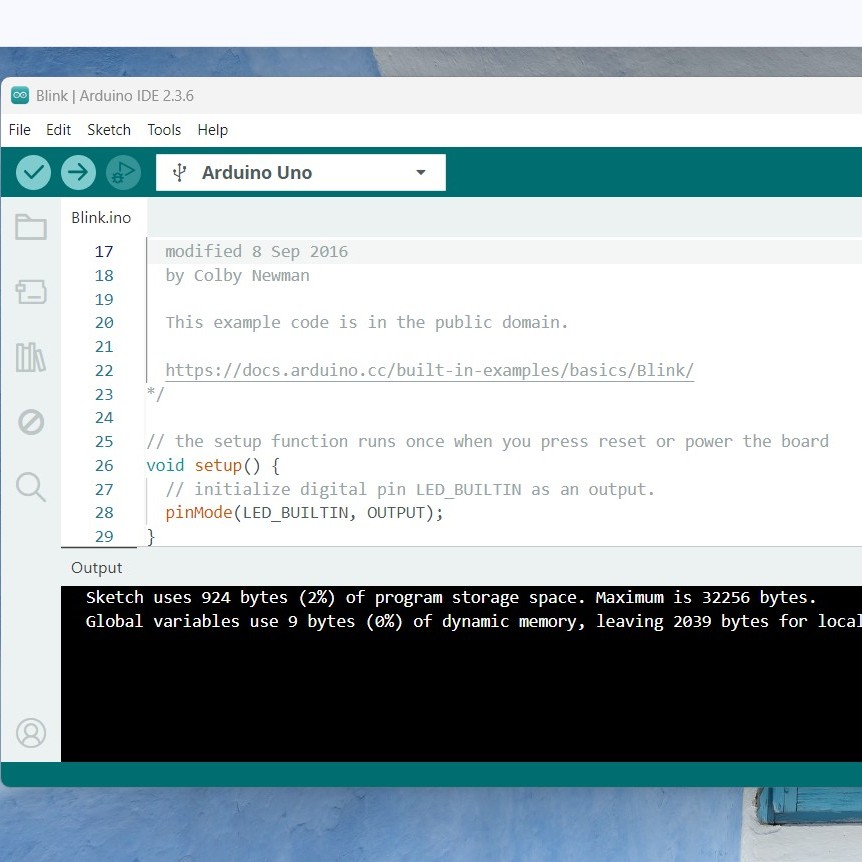

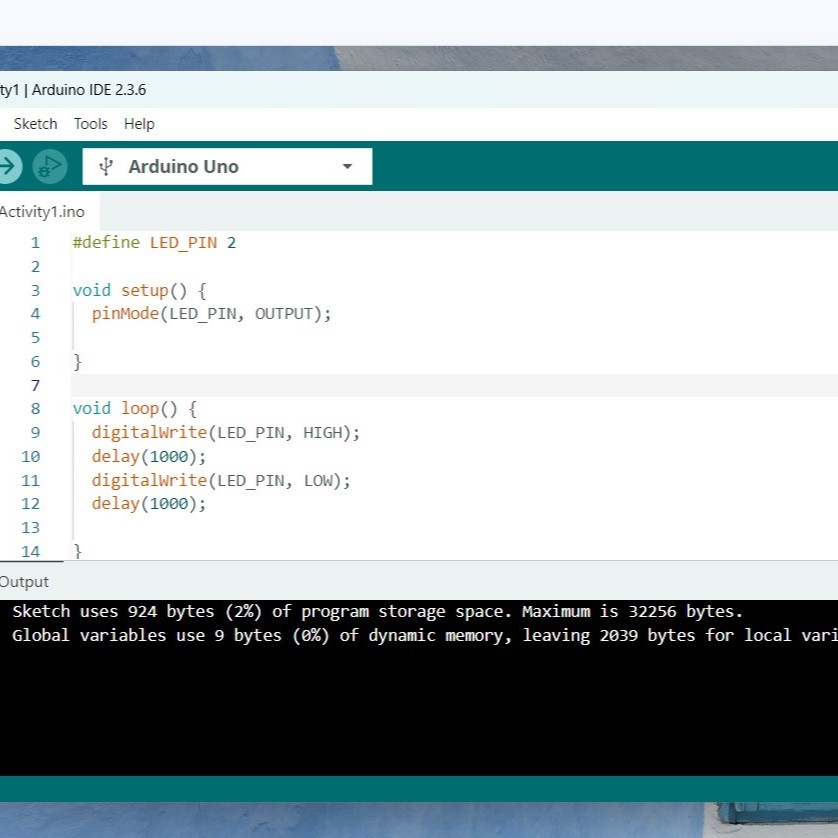

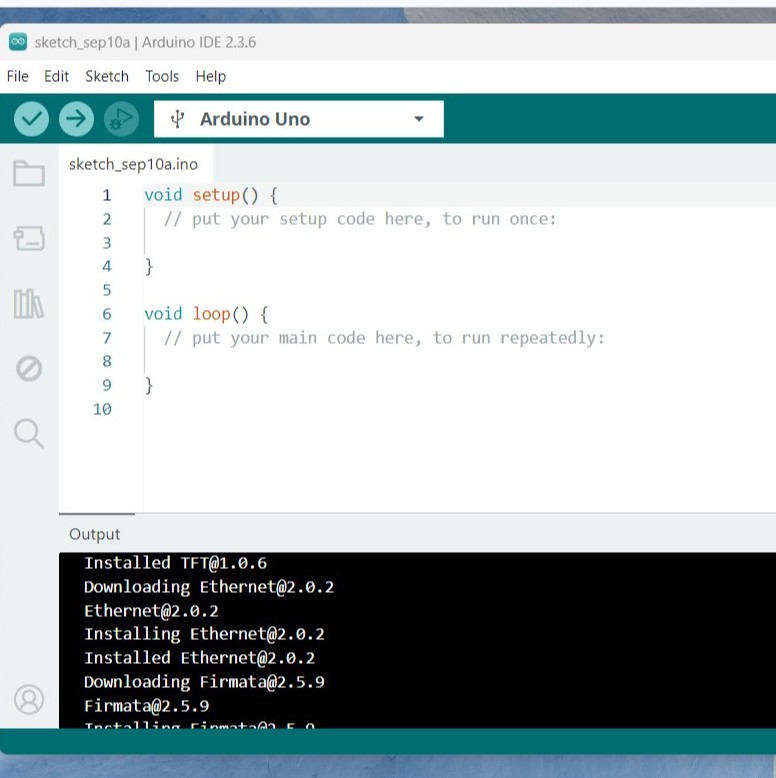

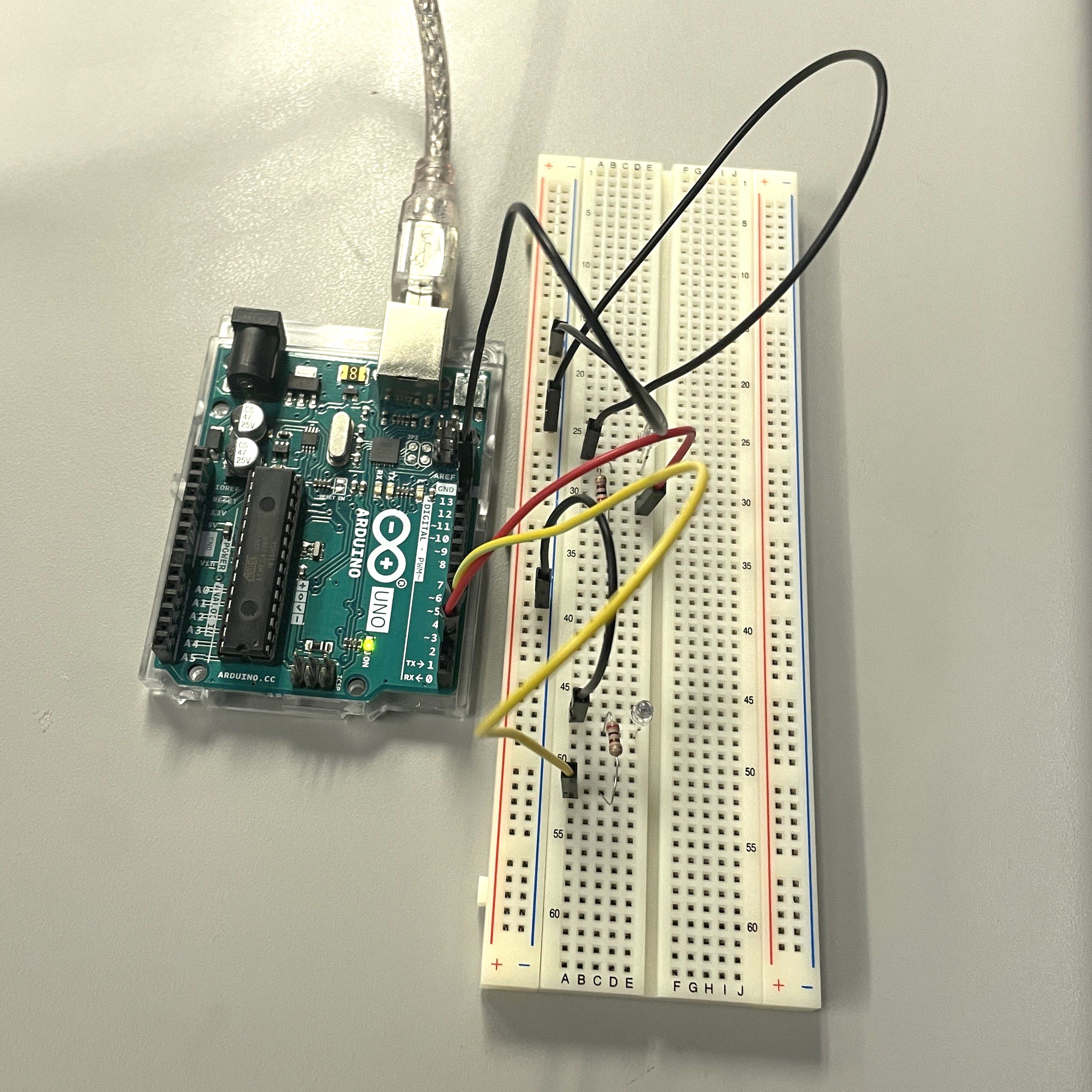

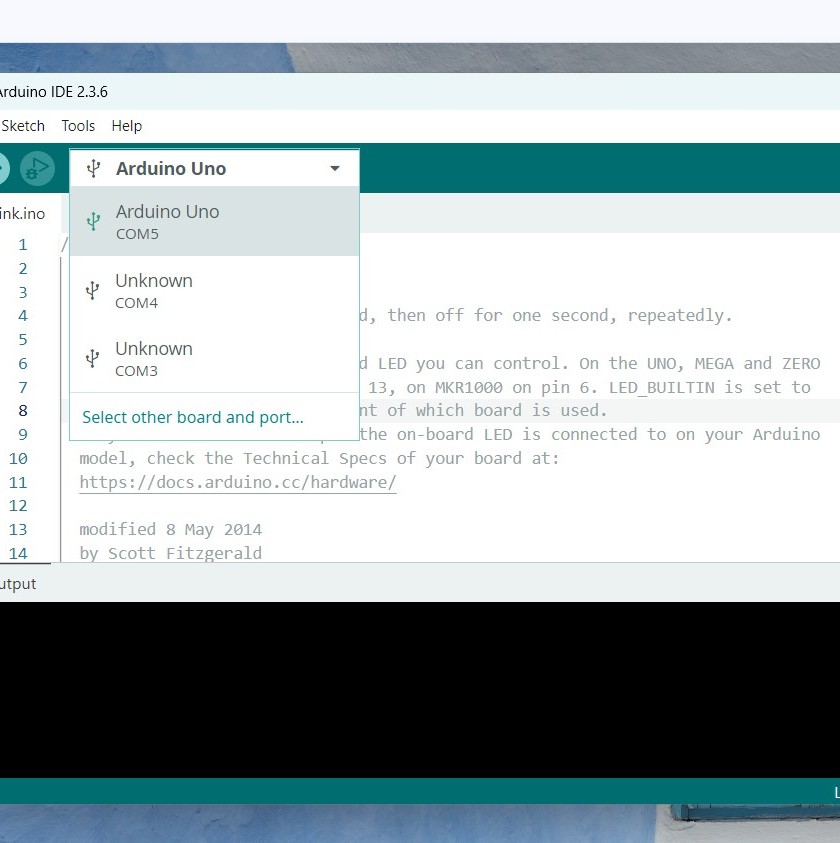

Arduino Uno connected to the breadboard with wires, two LEDs, and a resistor to show the hardware setup for the blink circuit. Arduino IDE open as the starting point before the sketch is edited. Arduino IDE edited sketch to blink LED on pin 2 and 1 second delay. Arduino IDE shows the blink code and is being tested. Arduino IDE shows the board the port selection dropdown with Arduino Uno selected on COM5 to confirm correct USB port and successful upload.

Activity 2

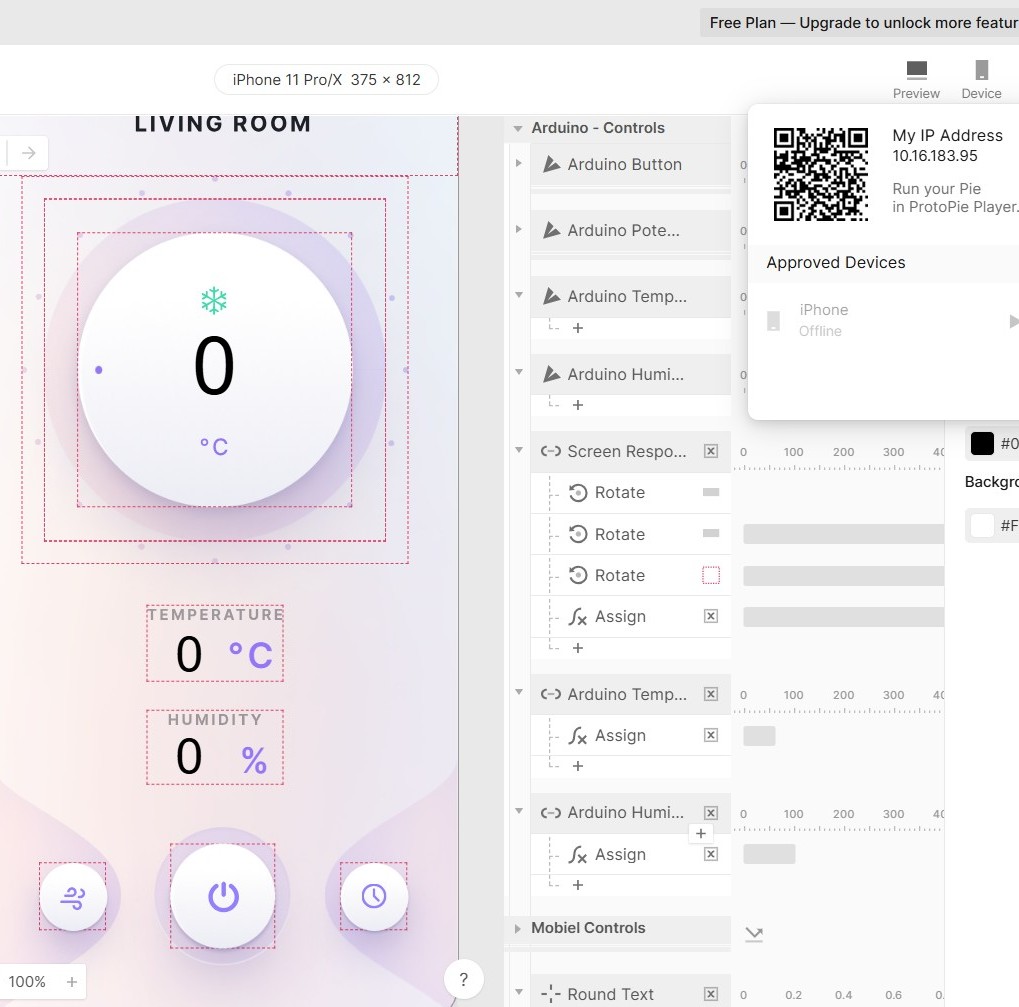

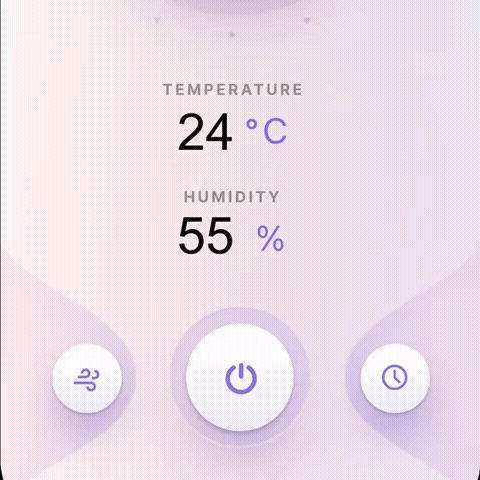

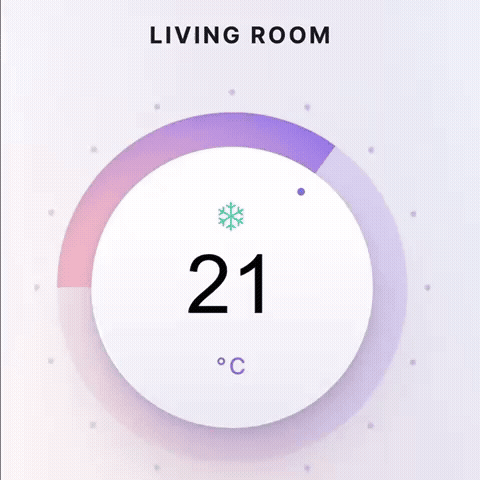

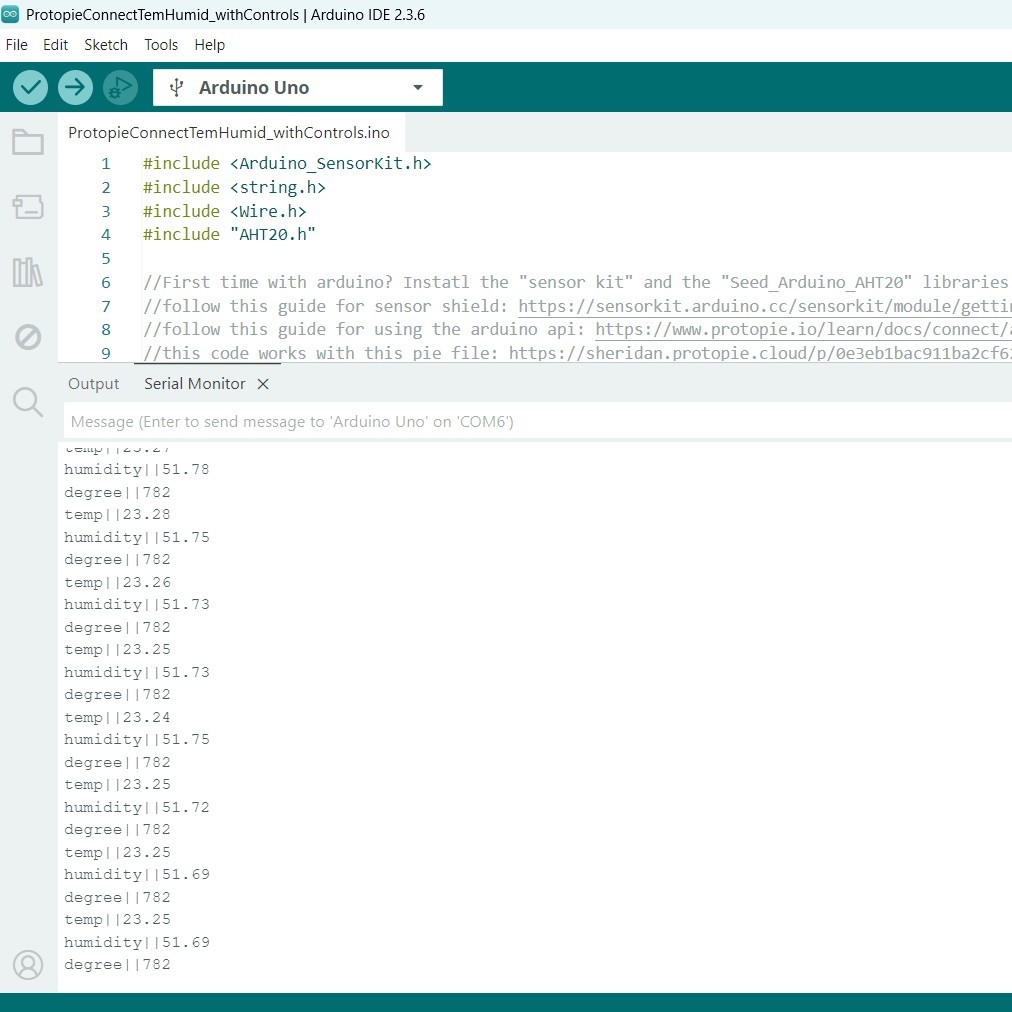

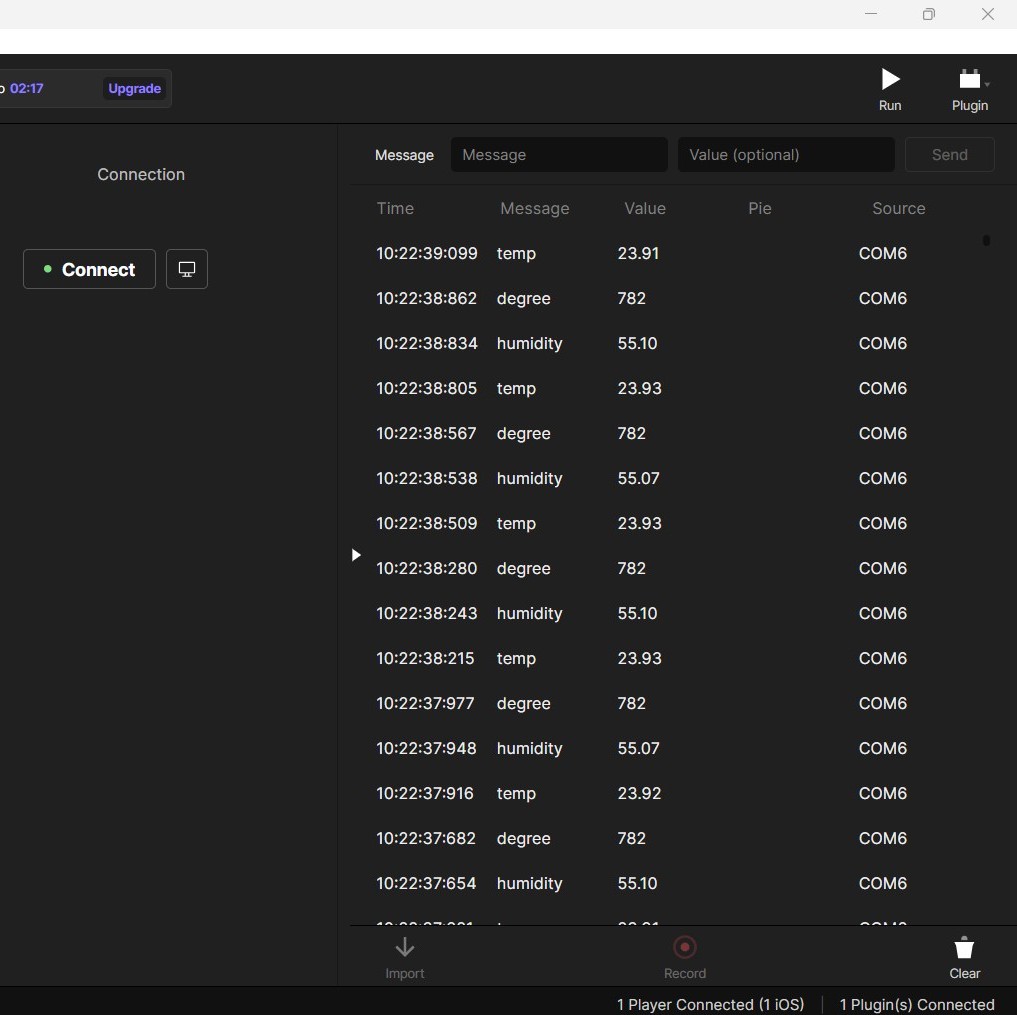

Arduino IDE sketch where serial monitor is displaying live output of temp, humidity, and degree values. ProtoPie interface (temperature/humidity dial) and QR code to import and use ProtoPie Connect. Testing temperature dial in ProtoPie Connect. Testing Arduino sensor reading in ProtoPie Connect. ProtoPie Connect window showing live messages/values (temp, humidity, degree) with Arduino connected and sending real-time sensor data into ProtoPie Connect.

Activity 3

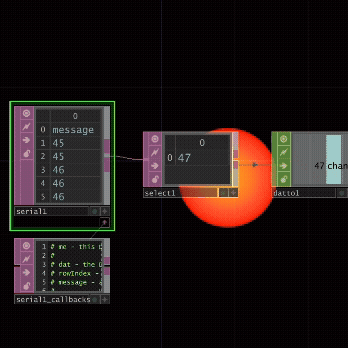

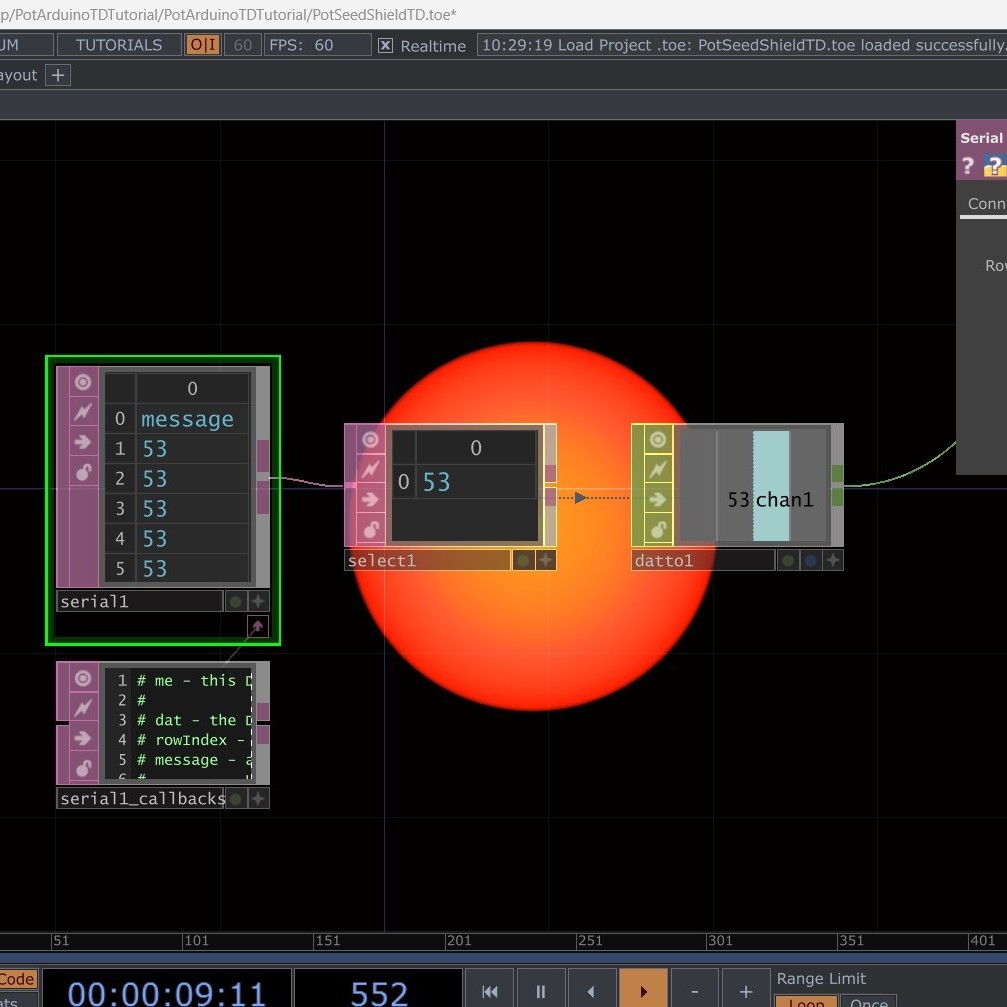

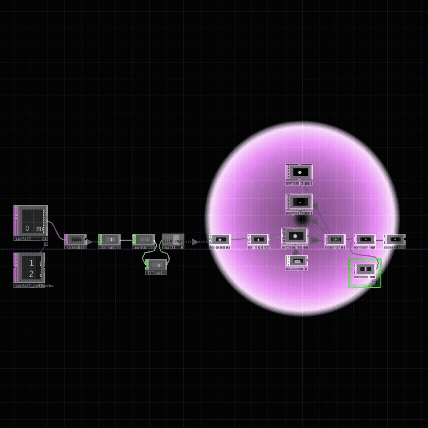

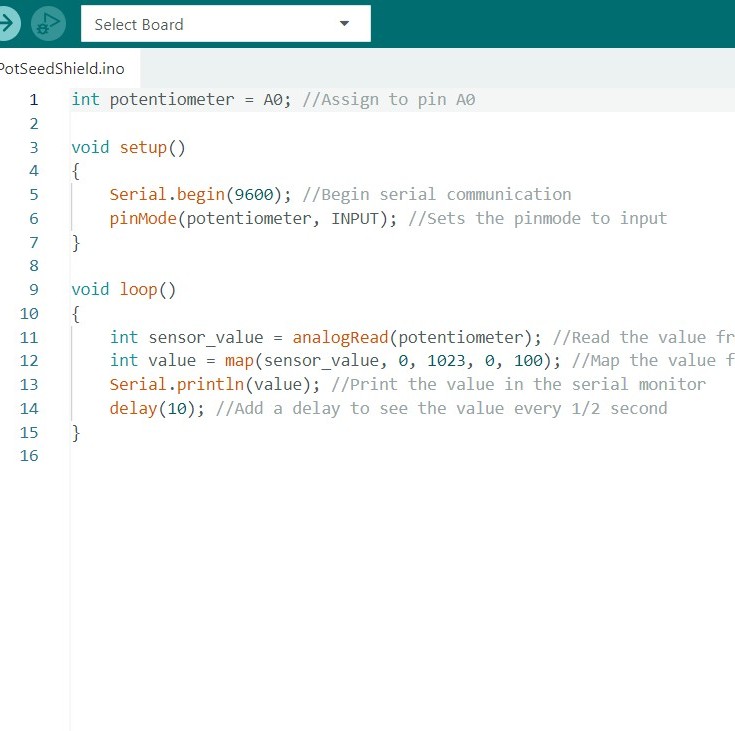

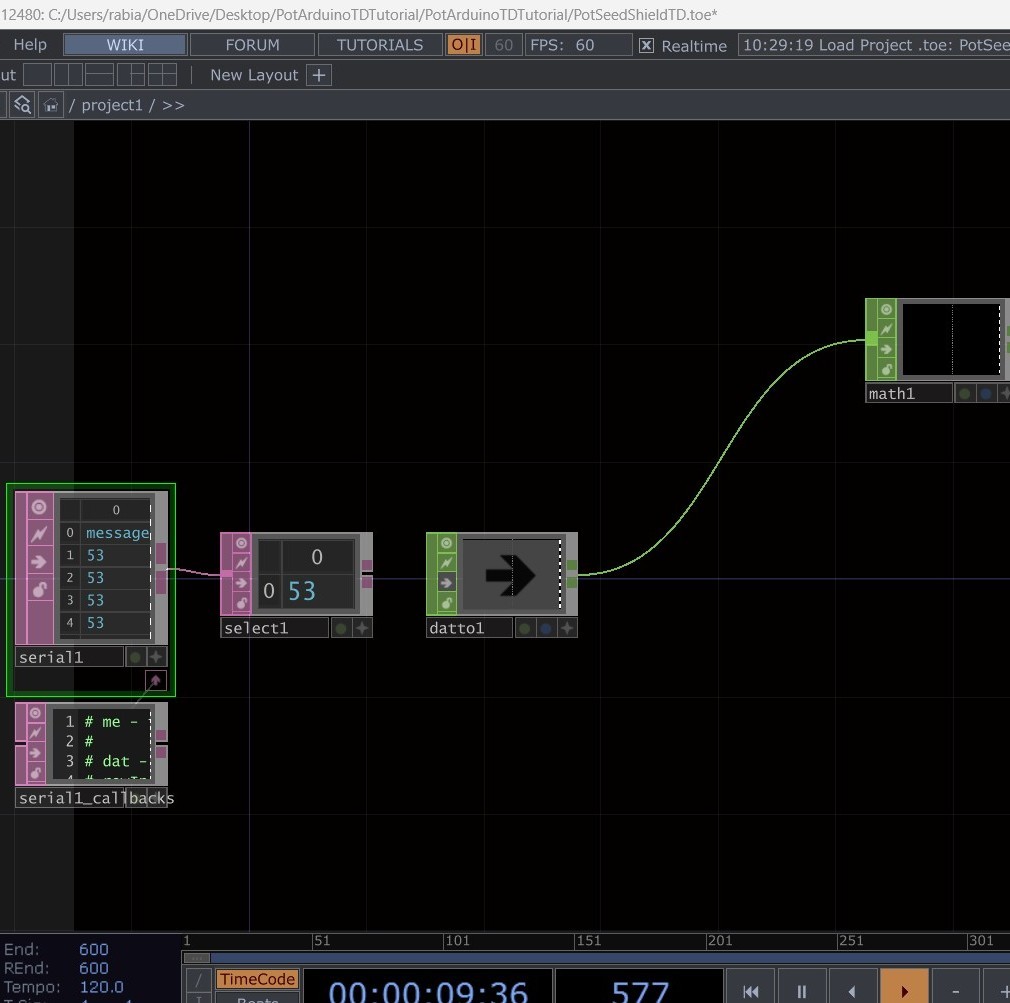

Arduino IDE code for reading dial values tolater be used in TouchDesigner. TouchDesigner interface with dial values being converted into usable data. Testing dial and visuals before further editing. TouchDesigner interface with serial data flow using dial input. Using math/filter nodes for smoothing, scaling, and controlling visuals. TouchDesigner interface with chain including sphere, transform, geo, render, light, cam, phong, etc. Dial values are adjusting the 3D visual's size making the sphere responsive to the physical movement of the dial.

Research Activity


WGSN Consumer Trend Research

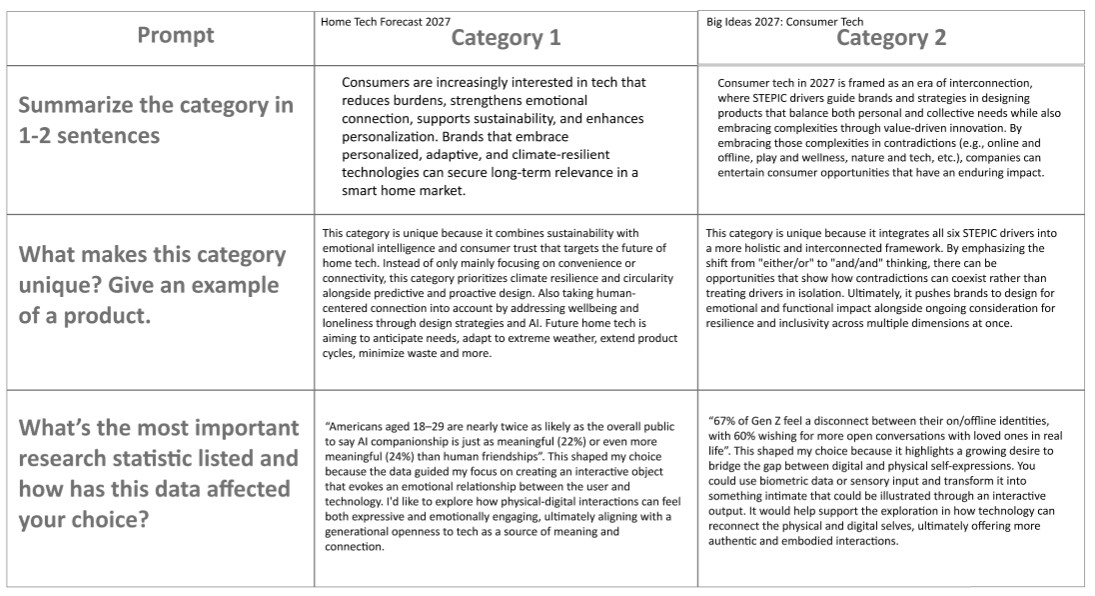

Exploring Home Tech 2027 categories.

WGSN Personas Research

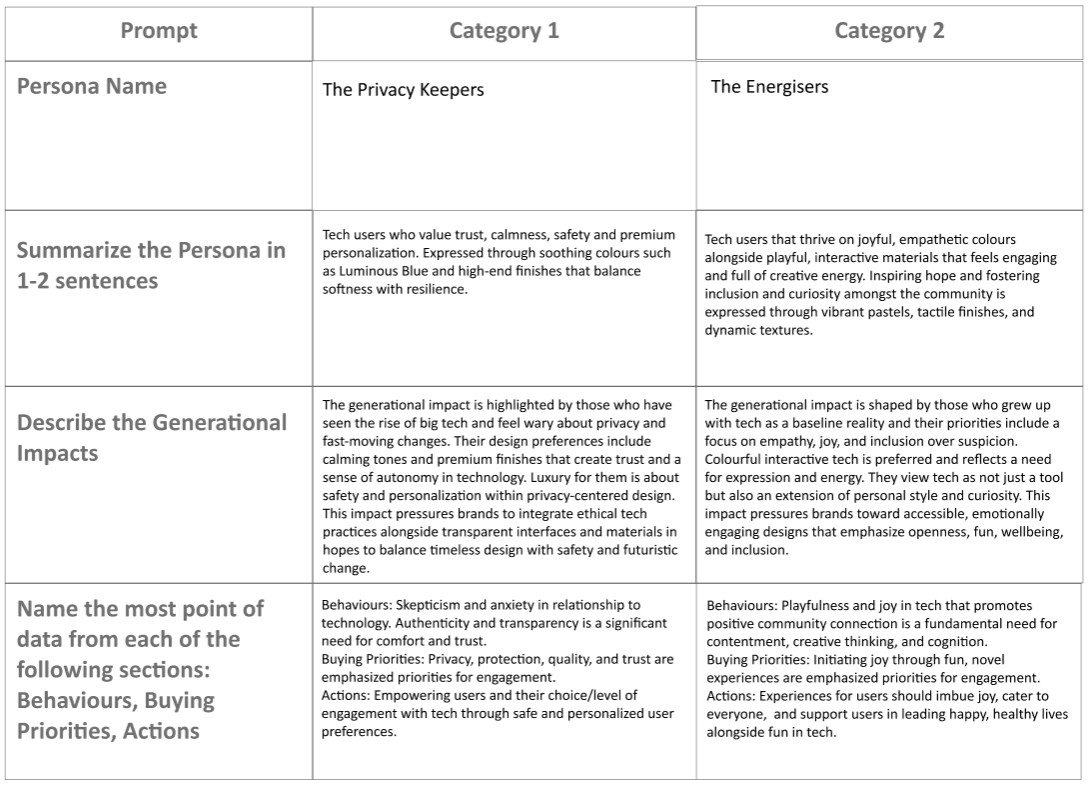

Exploring Personas and project/generational impact.

HMI Research

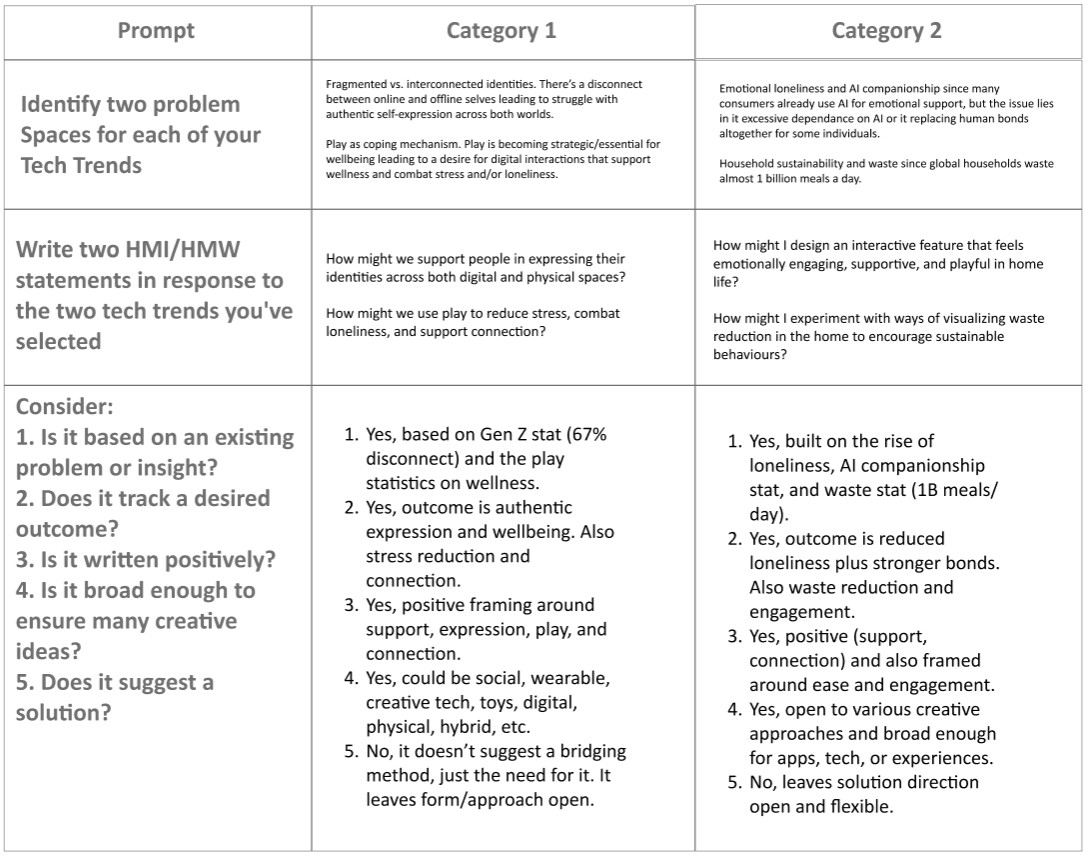

Exploring frameworks for problem-solving and project brainstorming.

Project Path

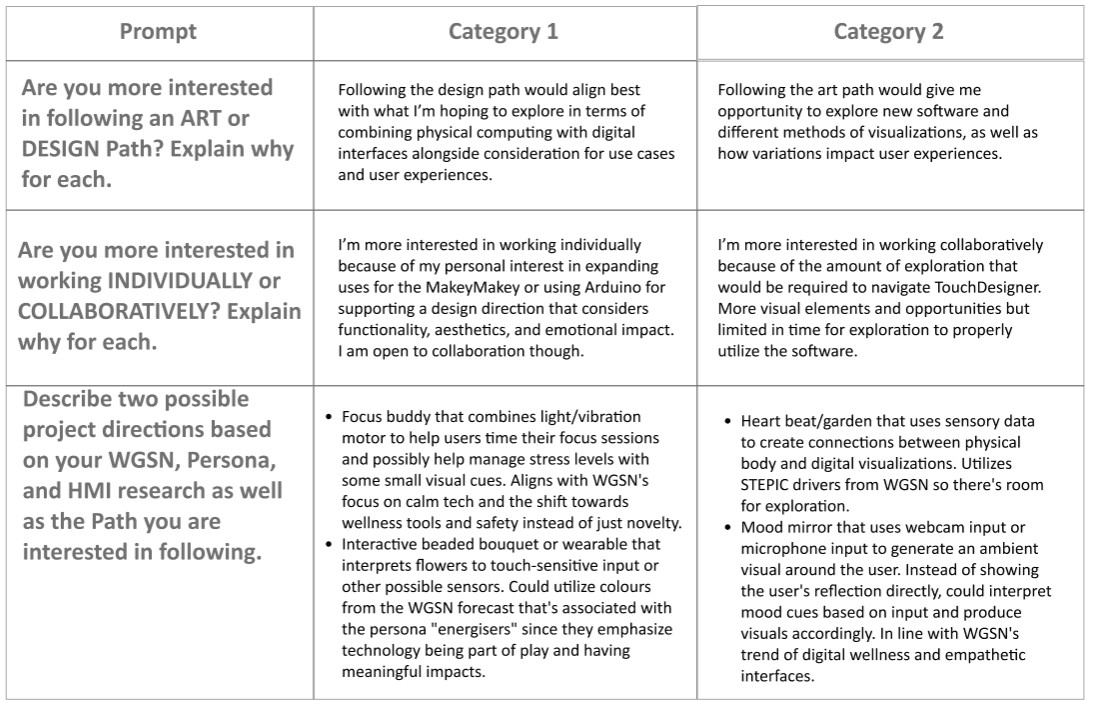

Exploring art and design path options.

Project 1 Concept


Design Path

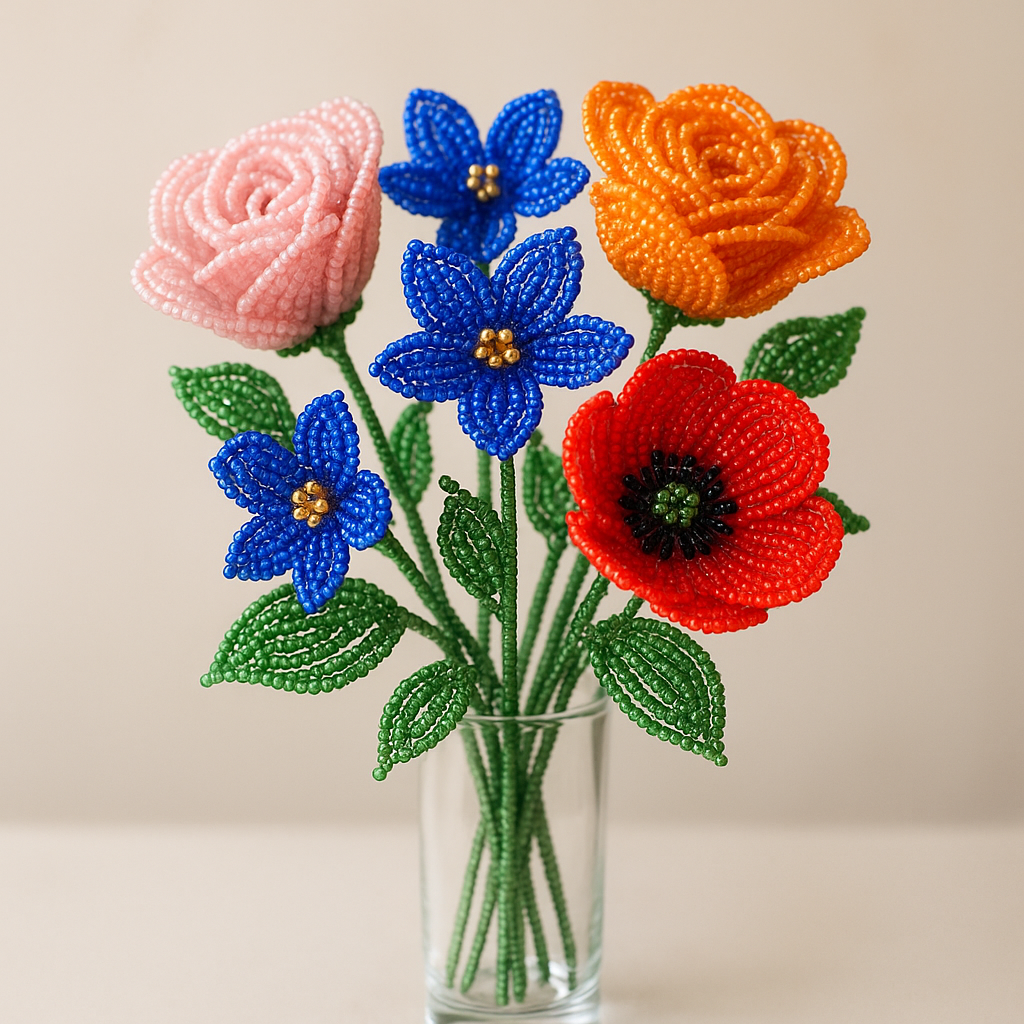

An interactive beaded bouquet that interprets each flower as a touch-sensitive input. When someone touches a flower petal or stem (while grounded), the Makey Makey or Arduino sends a signal into ProtoPie, where a digital response is triggered. My focus would be on creating an interactive object that evokes an emotional relationship between the user and technology. I'd like to explore how physical-digital interactions can feel both expressive and emotionally engaging, ultimately aligning with a generational openness to tech as a source of meaning and connection.
